Ghost-FWL: A Large-Scale Full-Waveform LiDAR Dataset for Ghost Detection and Removal

Kazuma Ikeda*,1, Ryosei Hara*,1, Rokuto Nagata1, Ozora Sako1, Zihao Ding1, Takahiro Kado2, Ibuki Fujioka2, Taro Beppu2, Mariko Isogawa1, Kentaro Yoshioka1
1Keio University   2Sony Semiconductor Solutions
CVPR 2026
*Indicates Equal Contribution
Paper Supplementary Code Dataset arXiv

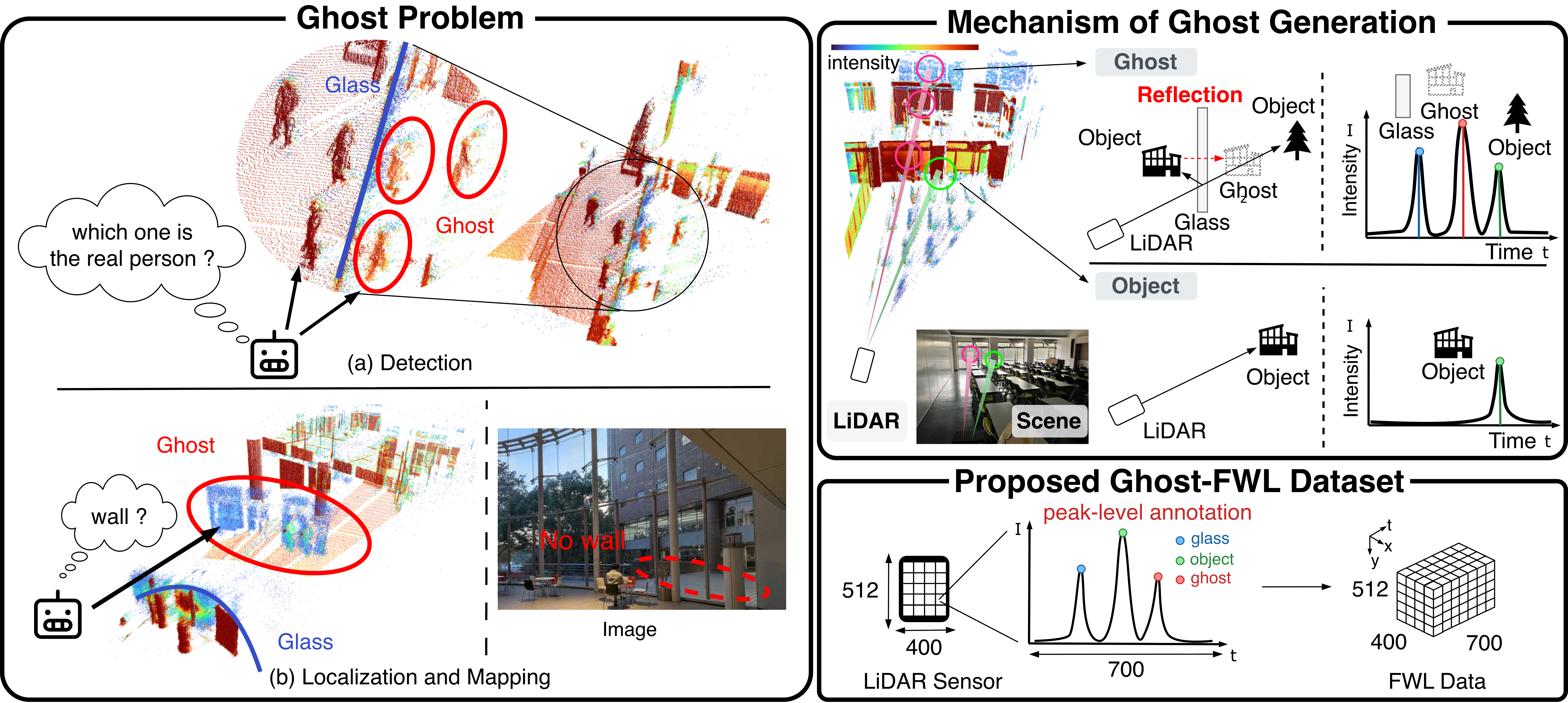

Teaser figure

LiDAR data often contains ghost points caused by multi-path reflections from glass and reflective materials (top right), which appear as spurious structures that do not physically exist. Ghost leads to substantial errors in tasks such as detection (left (a)) and localization and mapping (left (b)). We address this issue by introducing the Ghost-FWL dataset (bottom right) and a ghost removal framework.

Abstract

LiDAR has become an essential sensing modality in autonomous driving, robotics, and smart-city applications. However, ghost points (or ghost), which are false reflections caused by multi-path laser returns from glass and reflective surfaces, severely degrade 3D mapping and localization accuracy. Prior ghost removal relies on geometric consistency in dense point clouds, failing on mobile LiDAR's sparse, dynamic data. We address this by exploiting full-waveform LiDAR (FWL), which captures complete temporal intensity profiles rather than just peak distances, providing crucial cues for distinguishing ghosts from genuine reflections in mobile scenarios. As this is a new task, we present Ghost-FWL, the first and largest annotated mobile FWL dataset for ghost detection and removal. Ghost-FWL comprises 24K frames across 10 diverse scenes with 7.5 billion peak-level annotations, which is 100× larger than existing annotated FWL datasets.

Dataset

This section presents Ghost-FWL, the largest FWL dataset to date, which is specialized for ghost removal. Conventional LiDAR datasets provide only point cloud-level information, discarding the temporal multi-path information crucial for identifying ghosts caused by glass and reflective surfaces. Ghost-FWL addresses this gap by capturing complete temporal intensity histograms and providing peak-level annotations indicating the physical cause of each reflection (object, glass, ghost, or noise). Spanning 10 diverse scenes with 24,412 annotated frames and 7.5B peak-level labels, Ghost-FWL is 100× larger than prior annotated FWL datasets [Scheuble et al.], enabling learning-based ghost detection and removal at the waveform level.

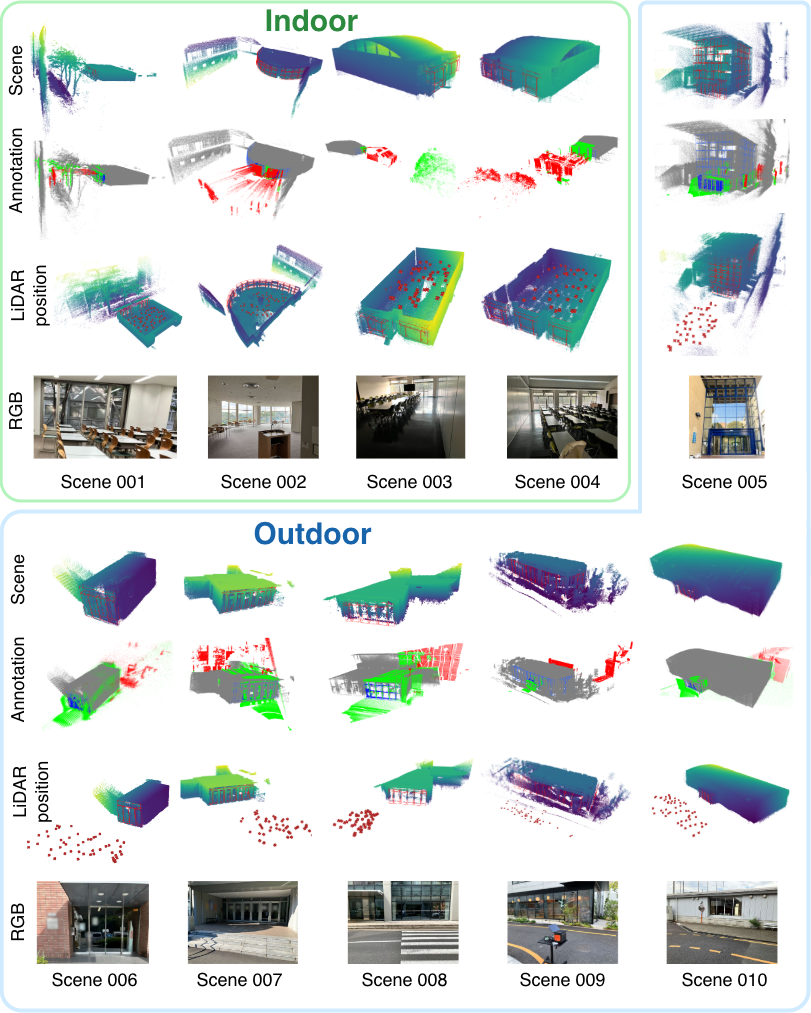

Supplementary dataset figure

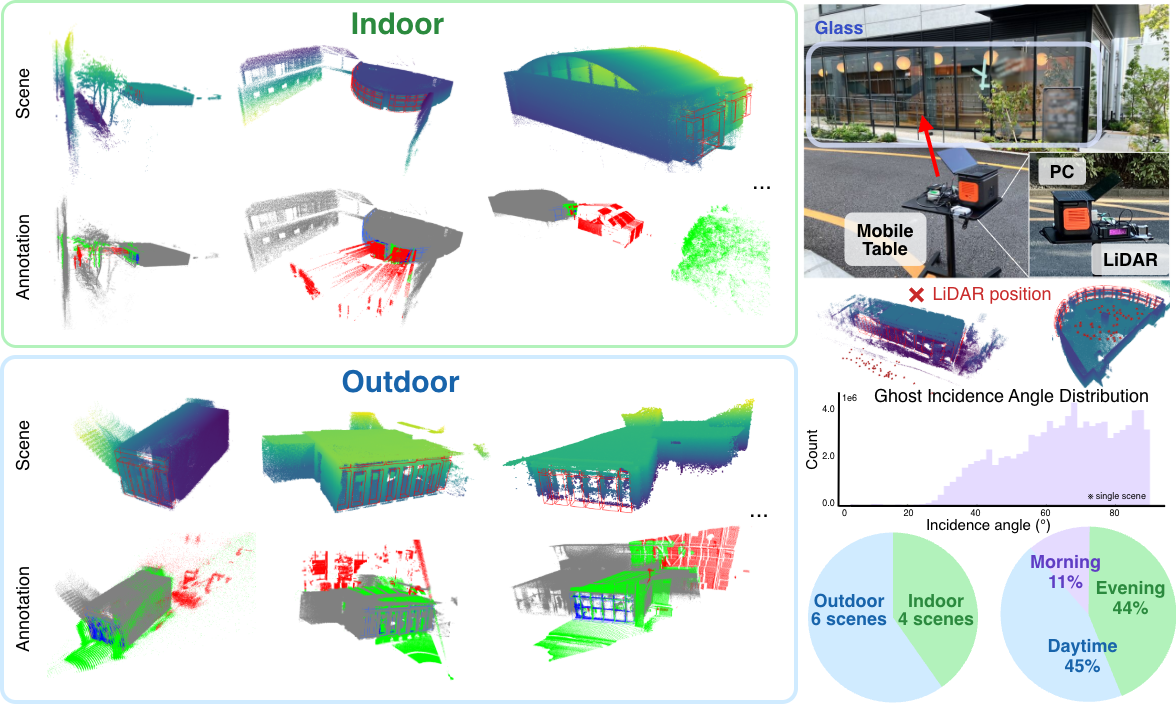

Overview of the Ghost-FWL. Left: Our dataset includes both indoor and outdoor scenes. Based on the dense 3D maps as shown in Scene, we annotated FWL data with semantic labels: Ghost (red), Object (green), Glass (blue), Noise. Gray regions are excluded from annotation. Right shows the data acquisition setup and dataset statistics, including the incident angle distribution and LiDAR positions examples. Data were collected at three different times of day: Morning (AM10–12), Daytime (PM12–5), and Evening (PM5–7).

Dataset Point Clouds

Interactive visualization of Ghost-FWL point clouds. Select a scene to inspect the raw dataset geometry.

Ready
Comparison of LiDAR real-world datasets for ghost detection and/or full-waveform analysis. Our Ghost-FWL contains mobile LiDAR full-waveform measurements and is one hundred times larger than prior work, making it the largest annotated FWL dataset.
Access & Platform Sensor Labels
Dataset Year Public Platform FWL LiDAR
Dim.		 Ray
Den.		 Ghost FWL
Data		 Frames/
Scenes†		 Annotated
Peaks
UNIST[1] 2017✓Stationary✗3D278✓✗----
Leddar PixSet[2] 2021✓Mobile✓3D0.267✗✓----
Lee et al.[3] 2023✗Stationary✗3D278✗✗----
FRACTAL[4] 2024✓Aerial✗2D--✗✗----
Scheuble et al.[5] 2025✗Mobile✓3D2.56✗✓0.24k / 2NA
Ghost-FWL (Ours) 2025✓Mobile✓ 3D200✓✓ 24k / 107.5B

FWL: Full-Waveform LiDAR. †Frames/Scenes: number of annotated frames and number of scenes within the real-world FWL data.

[1] Yun et al., "Virtual Point Removal for Large-Scale 3D Point Clouds with Multiple Glass Planes", IEEE Transactions on Pattern Analysis and Machine Intelligence, 2019.

[2] Deziel et al., "An Opportunity for 3D Computer Vision to Go Beyond Point Clouds with a Full-Waveform LiDAR Dataset", IEEE International Intelligent Transportation Systems Conference, 2021.

[3] Lee et al., "Learning-Based Reflection-Aware Virtual Point Removal for Large-Scale 3D Point Clouds", IEEE Robotics and Automation Letters, 2023.

[4] Gaydon et al., "FRACTAL: An Ultra-Large-Scale Aerial Lidar Dataset for 3D Semantic Segmentation of Diverse Landscapes", arXiv preprint arXiv:2405.04634, 2024.

[5] Scheuble et al., "Lidar Waveforms are Worth 40x128x33 Words", ICCV, 2025.

Method

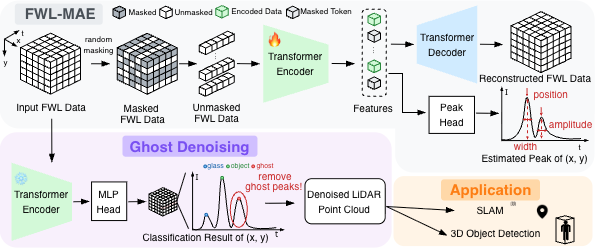

Given FWL data, our framework predicts and removes ghost-related signals. Our model consists of a transformer-based encoder and an MLP head. We further introduce FWL-MAE, a masked autoencoder designed for representation learning on FWL data, explicitly trained to reconstruct peak position, amplitude, and width. The ghosts detected by our model are then removed from FWL data, and the cleaned data are utilized for downstream tasks such as SLAM and 3D object detection.

Method overview figure

Results

Classification

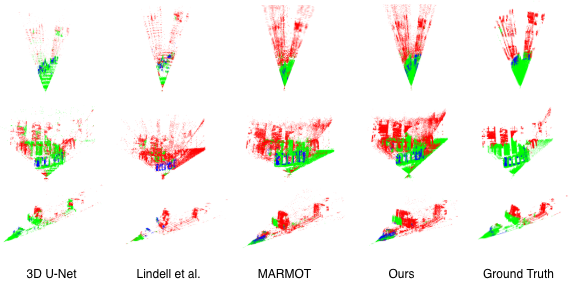

Peak classification results and point cloud visualization after applying ghost removal. All results were obtained using the proposed framework. Red, green, and blue indicate Ghost, Object, and Glass, respectively.

Classification results figure
Scene
Ready

SLAM

Trajectory and mapping generated by SLAM using Multi-Peak processing (left) and our ghost removal method (right). Multi-Peak processing includes numerous ghost points in the reconstructed map, leading to trajectory drift. The proposed method yields a trajectory that more closely follows the ground-truth path (white) by effectively removing ghost artifacts.

3D Object Detection

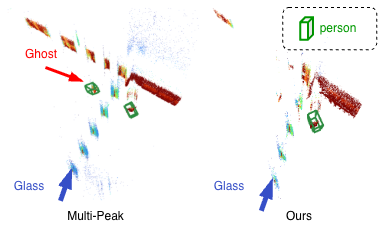

Qualitative evaluation of 3D object detection with Multi-Peak processing (left) and our ghost removal (right). Green bounding boxes indicate persons. With Multi-Peak, a ghost person is detected behind the glass wall, whereas our method suppresses this false detection.

Object detection results
3D Object Detection
SLAM results
SLAM

BibTeX


          TBA
